MODEL DELTA V-1
EQUIPMENT SPECIFICATIONS

DIMENSIONS: 16" X 12" X  24"
WEIGHT (W/O DRY ICE): 85 POUNDS
ELECTRICAL:  NONE REQUIRED

PROPELLANT:COMPRESSED AIR
PROPELLANT USE RATE:250CFM*

DRY ICE CAPACITY (INT. HOPPER):  25 POUNDS
OPTIONAL EXT HOPPER:75 POUNDS
DRY ICE USE RATE: +/- 3 POUNDS/MIN
OPERATING PRESSURE:  70 - 150 PSIG

CONSTRUCTION MATERIAL:STAINLESS or MILD STEEL
*PROPELLANT USE RATE DEPENDENT UPON DIRECTIONAL GUN

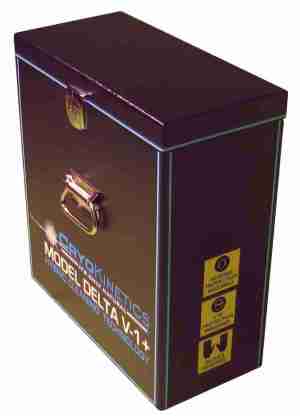

MODEL DELTA V-1 PLUS
EQUIPMENT SPECIFICATIONS

DIMENSIONS: 16" X 12" X  18"
WEIGHT (W/O DRY ICE): 25 POUNDS
ELECTRICAL:  NONE REQUIRED

PROPELLANT:COMPRESSED AIR
PROPELLANT USE RATE:250CFM*

DRY ICE CAPACITY (INT. HOPPER):  VARIES WITH MEDIA
MEDIA USE RATE: +/- 3 POUNDS/MIN
OPERATING PRESSURE:  0 - 60 PSIG

RIGHT ANGLE ATTACHMENTS FOR DRY ICE BLASTING
For use with the Delta V-1

Perfect for those crawl spaces and attics. The right angle
attachments are available for all directional applicator
guns.

DRY ICE BLASTING NOZZLE EXTENSIONS
For use with the Delta V-1

Nozzle extensions are available for all CryoKinetics directional
applicator guns. Lengths up to 8 feet are available.

WIDE-NOZZLE
For use with the Delta V-1

Designed for use with the G20 directional applicator gun,
this wide nozzle will give the operator a spray pattern
 of approximayely 8.0".

Click on the photo for more information.

PPE OXYGEN ANALYZER
A recommended safety item to be used in conjunction with the Delta V-1

Monitors the Oxygen level in an environment where dry ice blasting
is being used. The GasWatch will provide the operator with an audible,
vibratory and visual alarm if the Oxygen level drops below 19.5% in
the workers environment.

BLAST HOSES

Blast hose extensions available in lengths up to 85 feet..

AIR PREPARATION FOR DRY ICE BLASTING
EQUIPMENT AND CO2 BLASTING

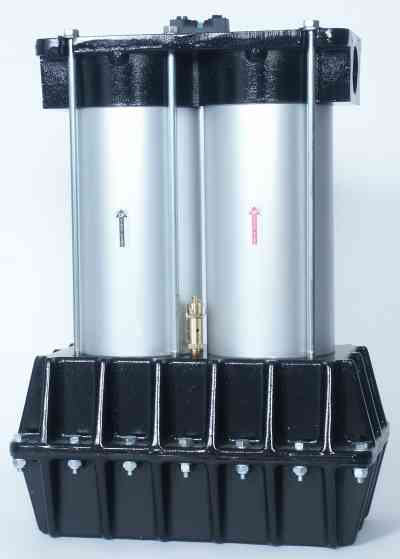

The economical and portable 180 Series filter will remove most of the moisture and particulate matter from your compressed air supply. Standard 5-micron rating. Rated capacity is 500 scfm up to 150 psi.
